My plans for an ultra low energy house

Arriving in Oxford, New Zealand

Arriving in Oxford, New Zealand

Back in 2004/05 we did a crazy journey driving across the world from Oxford, England, to Oxford, New Zealand, in a 1954 Morris Oxford fundraising for the Red Cross.  It wasn’t meant to be an environmental journey but it did open our eyes to some environmental challenges across the world:

  • people living underground in North Africa to escape the heat;
  • monsoon flooding in Mumbai; and
  • droughts in Australia.

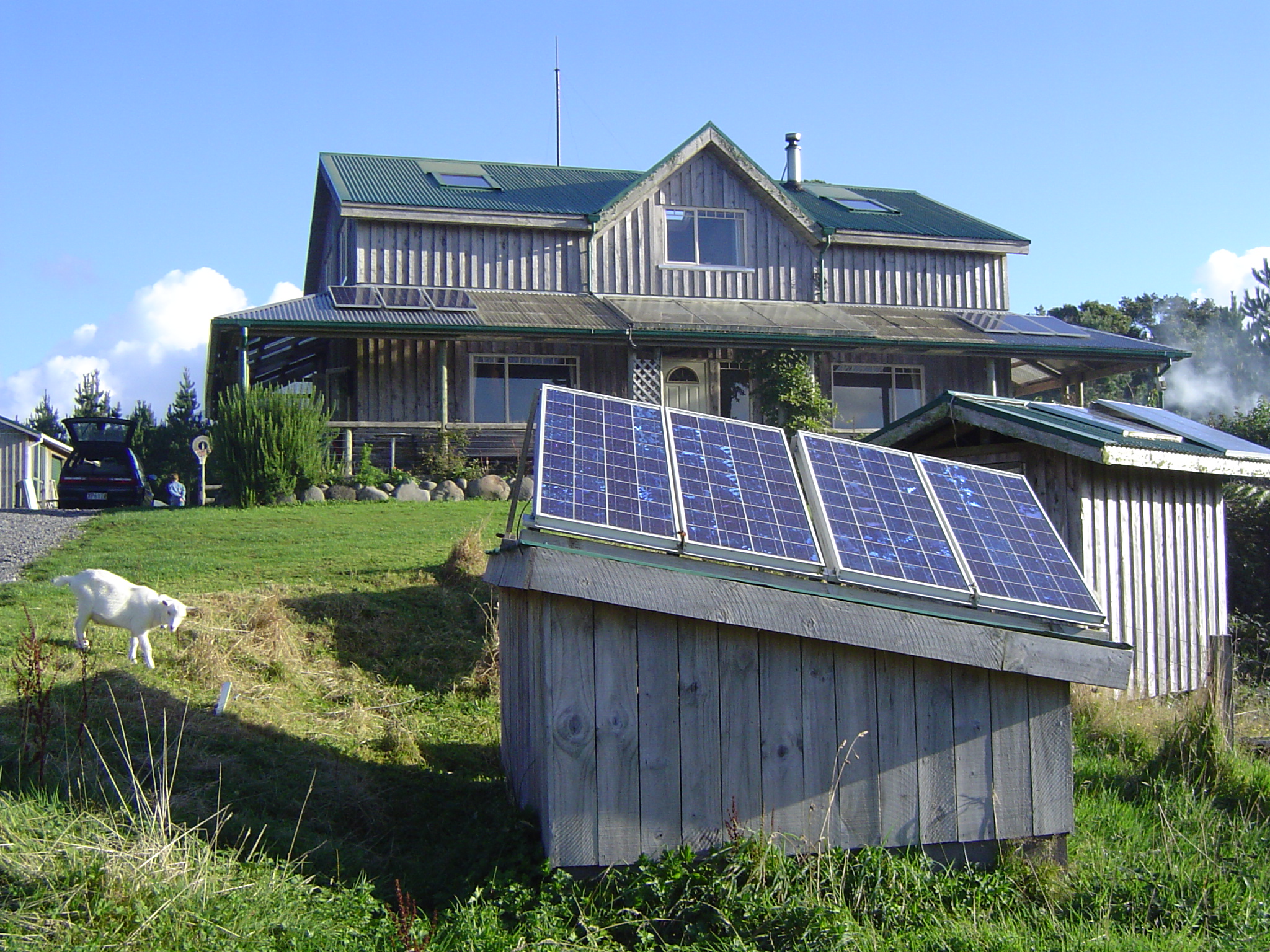

The Eco Inn, New Zealand

The Eco Inn, New Zealand

We also experienced first hand some renewable technology at work.  We saw an enormous wind farm in Southern India and in New Zealand we stayed at the inspiring EcoInn where they have micro hydro, micro wind, solar PV, solar thermal, biomass heating, rainwater for drinking and river water for washing.  The telephone was the only mains connection.

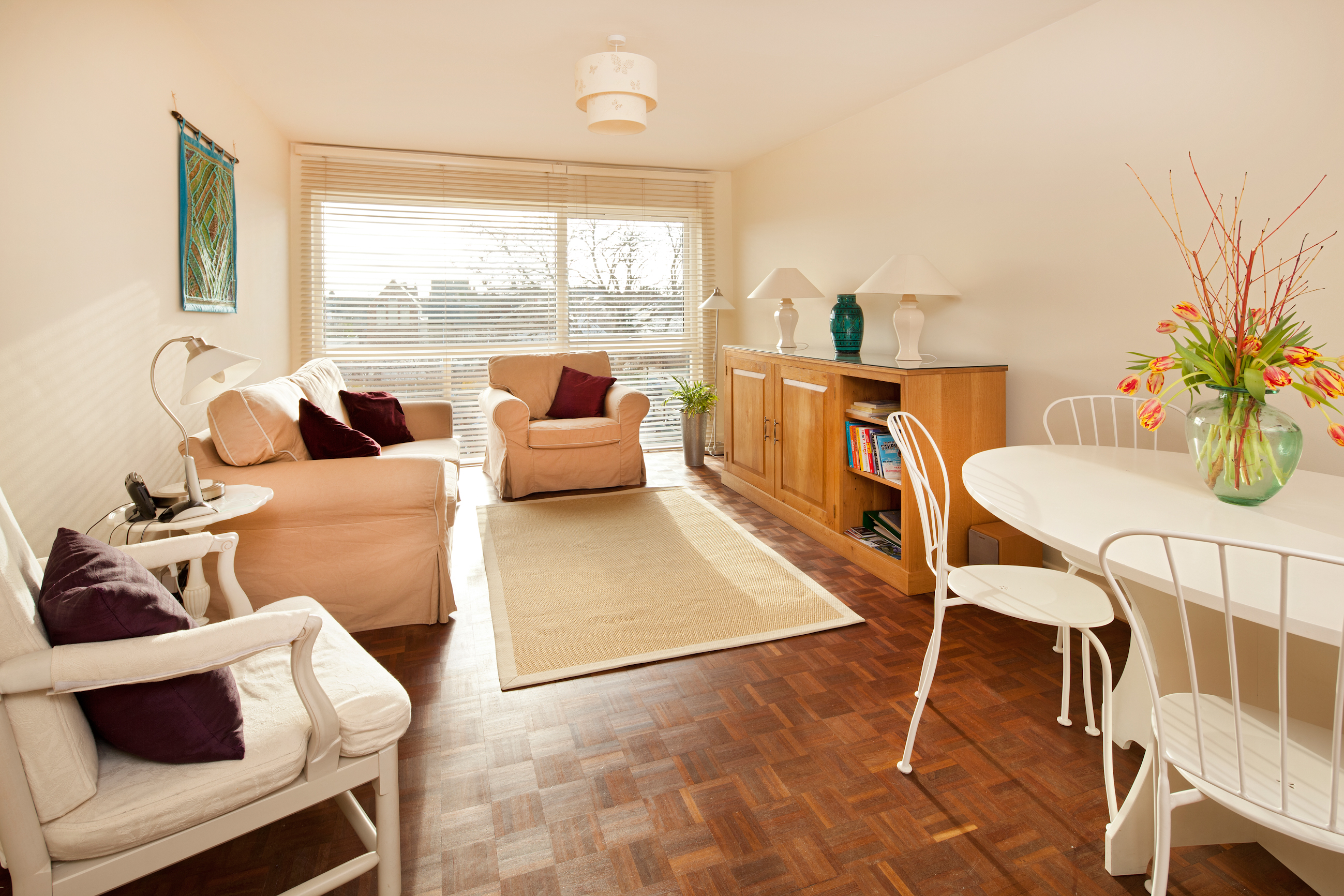

The Oxford EcoFlat

The Oxford EcoFlat

Once back in Oxford, England, we started going to events organised by COIN and became very focused on climate change.  We comprehensively refurbished our flat, The Oxford EcoFlat, to make it an energy efficient and healthy place to live.  The results were surprisingly good despite the constraints of being a flat in a block.  Of three eco-renovated homes studied by an Oxford Brookes MSc Student, Simon Cheung, our flat came out with the best results.

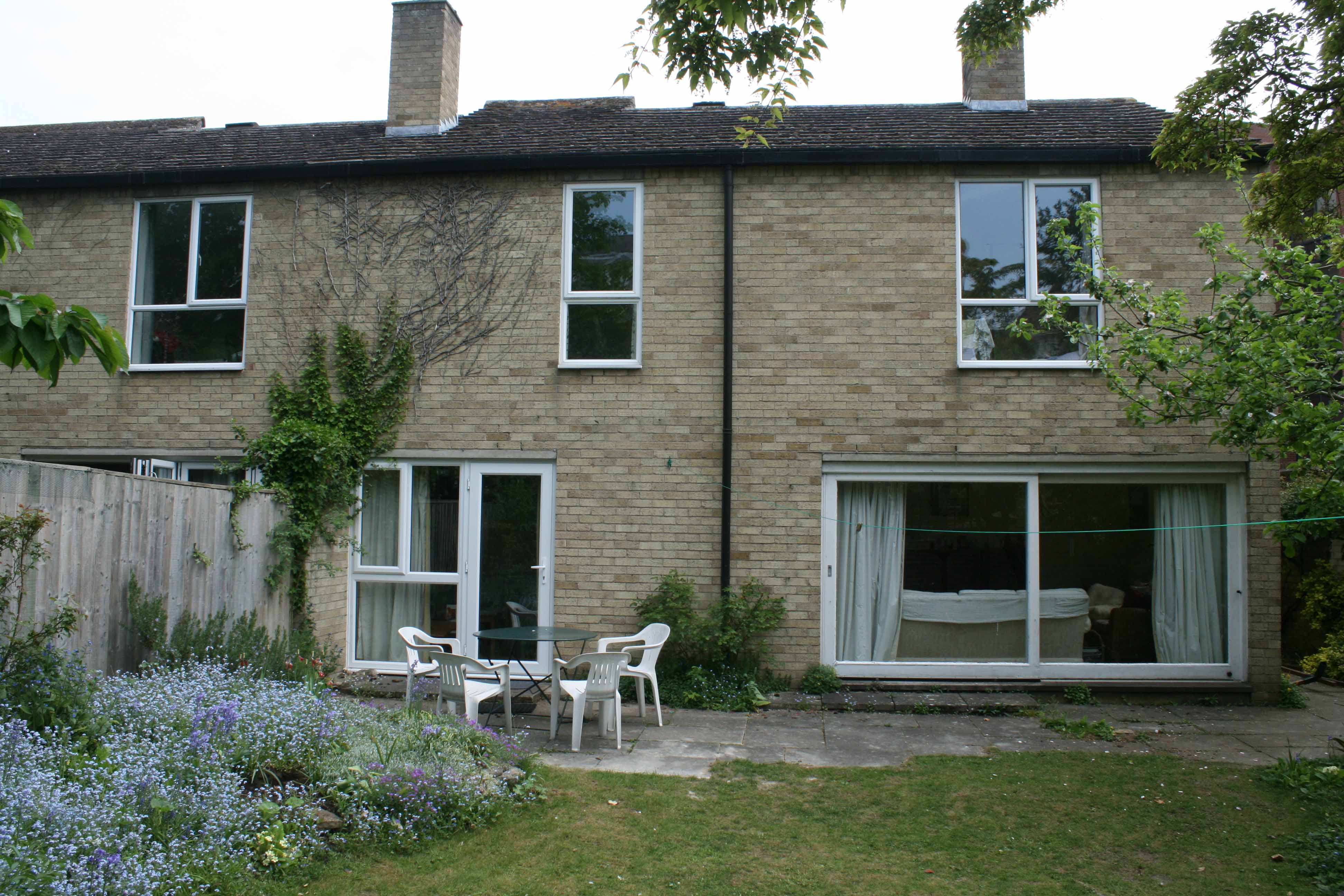

IMG_8268 medium

With one child and one on the way we moved to a 1960’s four bedroom, end of terrace house in Central North Oxford.  We had more ambitious plans for what we might do and met with several architects.  Of those we saw it was Charlie Luxton who impressed us with his ideas and his willingness to roll up his sleeves and get involved.

Charlie suggested we use External Wall Insulation (EWI) and render on the side and back of the house and use Internal Wall Insulation (IWI) at the front to maintain the original brick wall along the front of the terrace.  He also came up with a more open plan layout to make the house work better for us internally.  We had some computer modelling undertaken of the thermal performance of the house with the proposed improvements using the Passive House Planning Package or PHPP for short.

The PHPP model suggested the existing building would use 180 kWh/psm/pa.  As our house is about 114 sqm that equates to 20,520 kWh pa.  This is not far off the national average for gas consumption which is about 18,000 kWh of gas (although this figure includes gas for space heating, hot water and cooking).  In fact, in our first year at the house we used about 10,000 kWh of gas for heating and hot water about half what the model predicted.

The model for the refurbished house assumed the following measures had been done:

  • Roof, wall and floor insulation
  • Replacement windows
  • Mechanical Ventilation with Heat Recovery (MVHR)

This reduced the predicted space heating demand down to a very modest 28 kWh/pms/pa or 3,200 kWh/pa for the whole house.

Our development of 13 houses was built in 1966/67 to a design by local architects Brett and Pollen.  It falls within the North Oxford Victorian Suburb Conservation Area and there is a restrictive covenant that means that consent from every home owner is required for any external alterations.

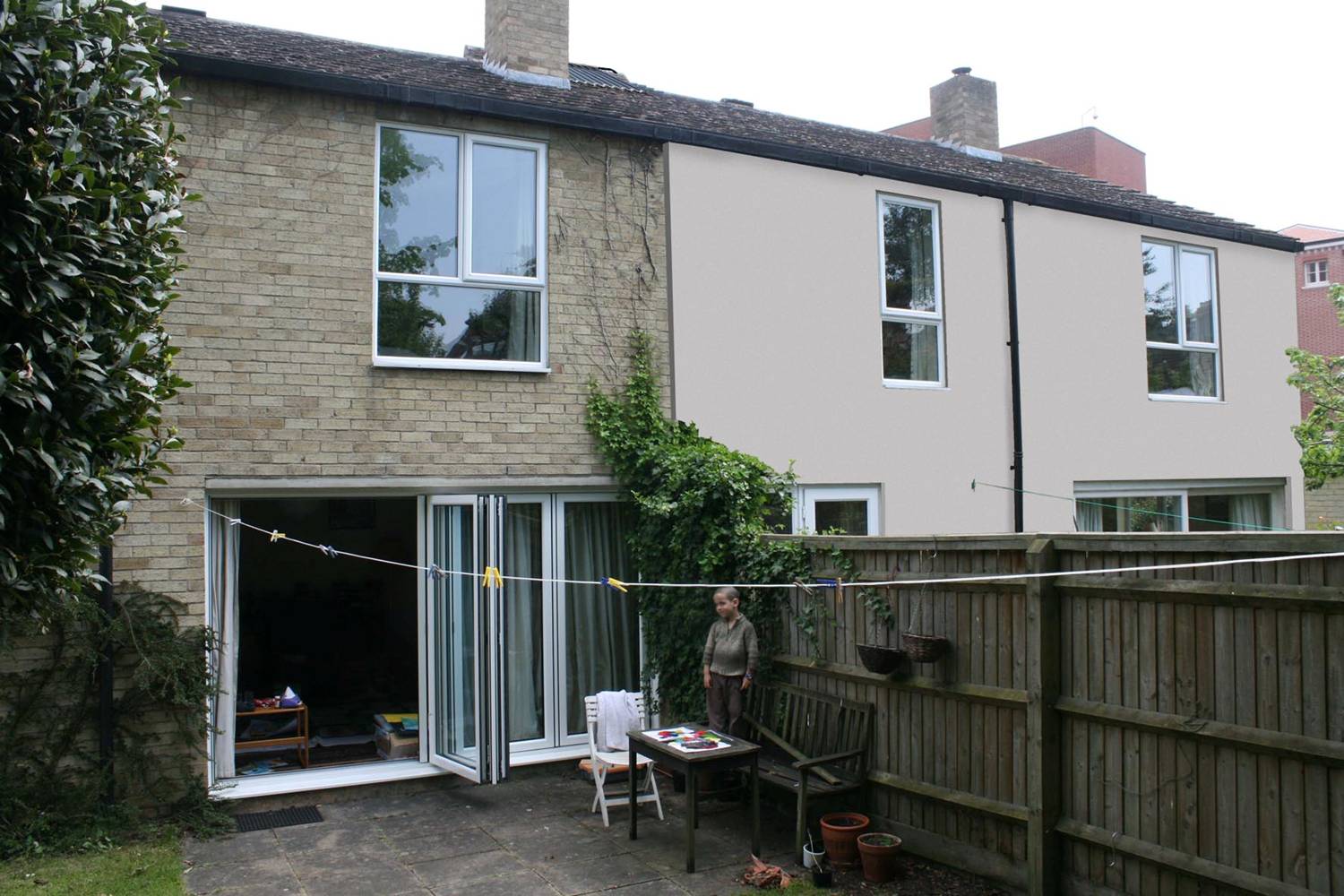

Image by Charlie Luxton Design

Image by Charlie Luxton Design

Our plans for external wall insulation and render on the side and back of our house were not well received and we were only given consent to insulate and render the side (gable end) wall.  We looked at the potential to mix internal and external insulation but concluded that this would be inefficient and difficult to do well.  We reluctantly concluded we should look at an internal wall insulation solution.  This threw up various concerns as follows:

  • Loss of thermal mass (if walls are kept warm they can act like giant night storage heaters slowly releasing their heat to the inside of the house);
  • Loss of floor space (did we really want to pay for the work twice – once by the builders and the second time through the potential reduction in the value of our house;
  • Risk of interstitial condensation (this is when warm damp air condenses on a cold surface in the wall).

One of my work colleagues, Steve Harris, visited our house and suggested we build a new brick wall around the front, side and back, thereby forming a new large cavity to insulate whilst maintaining the brick look of the development.

We found a brick that matches the texture of the existing wire cut bricks and as we can’t match the colour we are using the services of Construction Cosmetics to tint the bricks to almost exactly match the original colour.

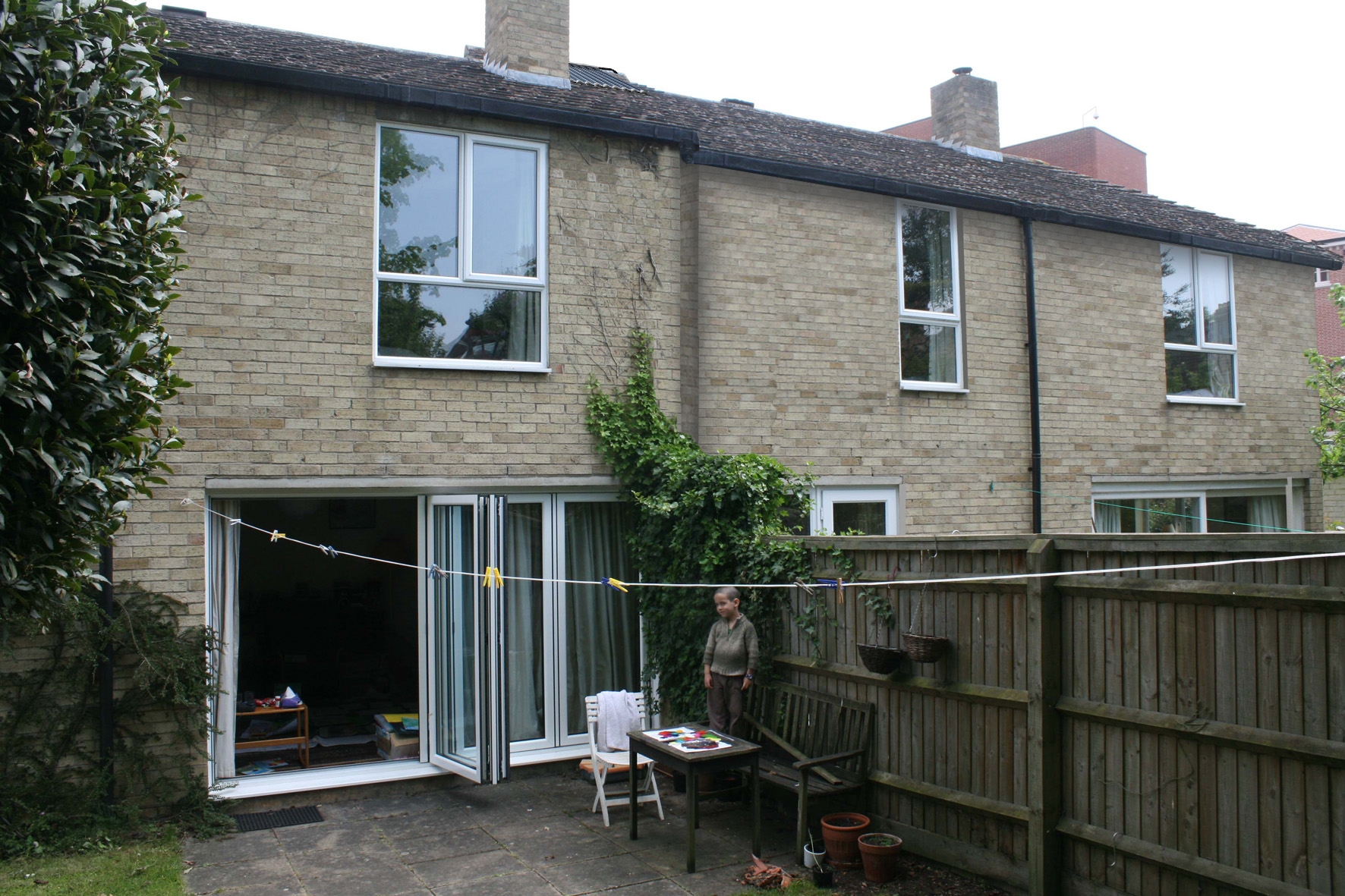

Rear from number 9

Image by Charlie Luxton Design

Charlie Luxton produced a set of images to suggest what the house would look like with the new brick walls.

Our neighbours liked the idea of using bricks more than they did the EWI/Render option but several people were unhappy about the step it would create in the front, currently straight, wall.

To find a compromise I suggested that we only build new walls on the back and side of the house.   We then submitted a new application for planning permission to this design.

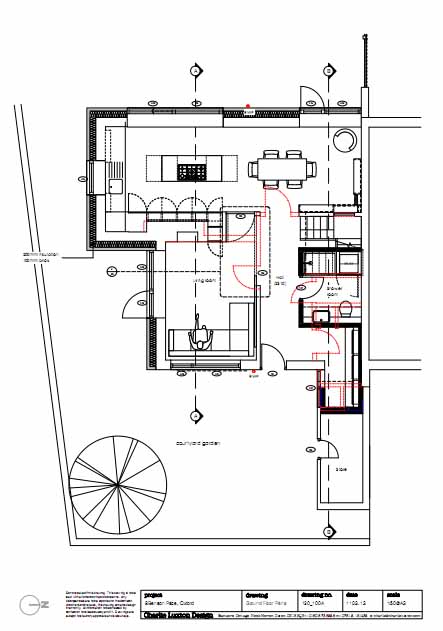

Drawing by Charlie Luxton Design

Drawing by Charlie Luxton Design

Along with the new brick wall to form a second insulated cavity we are also planning to install the following measures:

  • High levels of insulation in the roof and floor
  • Solar thermal for hot water – split east/west system with evacuated tubes
  • Thermal store (hot water cylinder)
  • Under floor heating (at ground floor only)
  • Wood burning boiler stove (heating hot water for thermal store)
  • High levels of air-tightness
  • Mechanical Ventilation with Heat Recovery (MVHR)
  • Triple glazed windows
  • Solar Photovoltaics or PV for electricity (already installed)

With all this work we hope to achieve a very comfortable, stylish ultra low energy home that will fulfil our needs for many decades to come.
